    RMS-F (Radiation Monitoring System for Food)

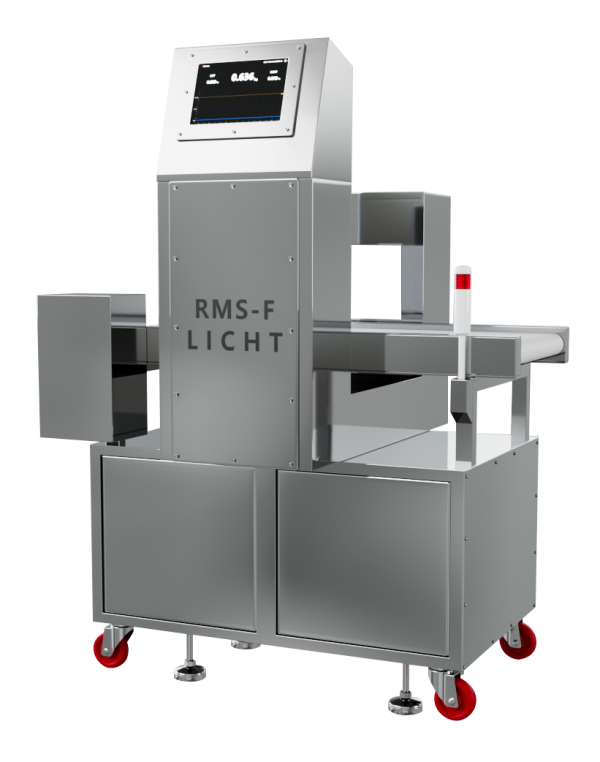

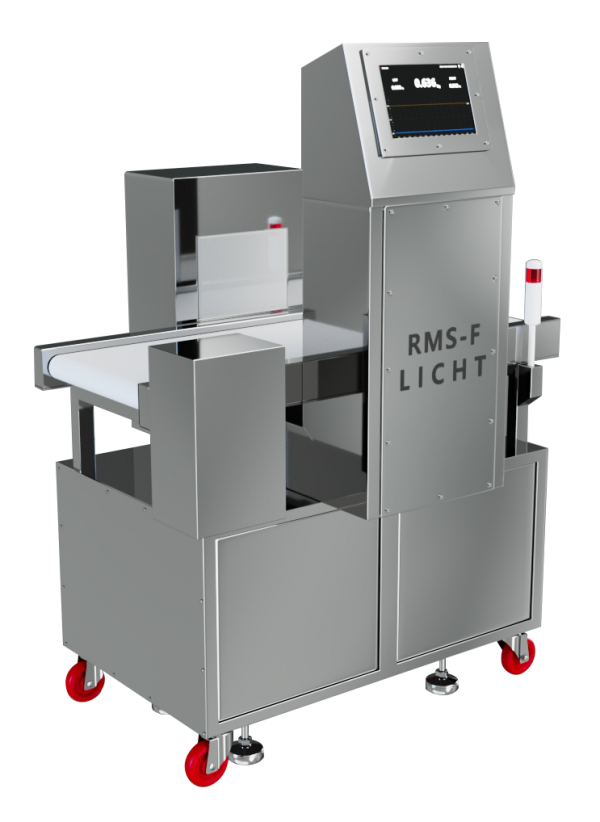

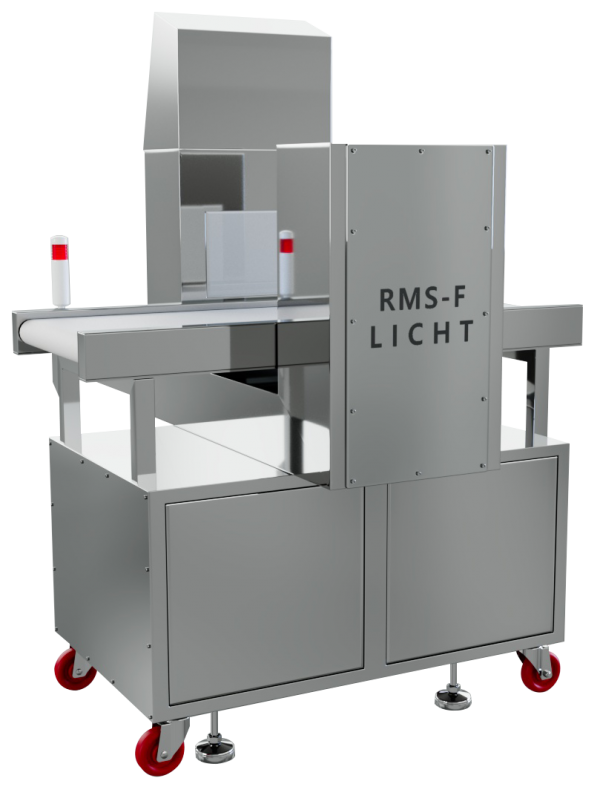

RMS-F (Radiation Monitoring System for Food) can report accurately the radiation dose emitted from a test object as a numerical value through a sensor and photomultiplier tube when food enter the inspection table through a conveyor.

RMS-F is a radiation measuring instrument that can be used in various fields such as agriculture, marine products, and food as it can measure large quantities of food quickly and conveniently.

Detector

 Detector type

 Plastic scintillator

 Efficiency

 10,000 cps / (μSv/h, Cs-137),

 5,000 cps / (μSv/h, Co-60) or more

 Sensitivity

 0.2 μSv/h BG condition,

 0.1 μSv/h change detection ( <1 s )

 Operating range

 30 keV ~ 3 MeV

 Operating

 temerature

 5℃ ~ 55℃


Alarm

 Alarm type

 Radiation detection

 Alarm

 Beeping, Conveyor stop


System specification

 Operating system

 Windows 11 Home

 Storage

 eMMC drive: 64GB

 SSD drive: 128 GB

 RAM

 8GB RAM


Display

 Screen size

 10.5" PixelSense™

 Resolution

 1920 x 1280 (220 PPI)

 Graphics

 Intel® UHD Graphics 615


Other specifications

 HEAD(mm)

 1050x400

 CONVEYOR(mm)

 1200x450

 BELT(mm)

 2230x348

 BELT TYPE(mm)

 900207

 ELECTRIC POWER

 AC220-230, 50/60Hz
