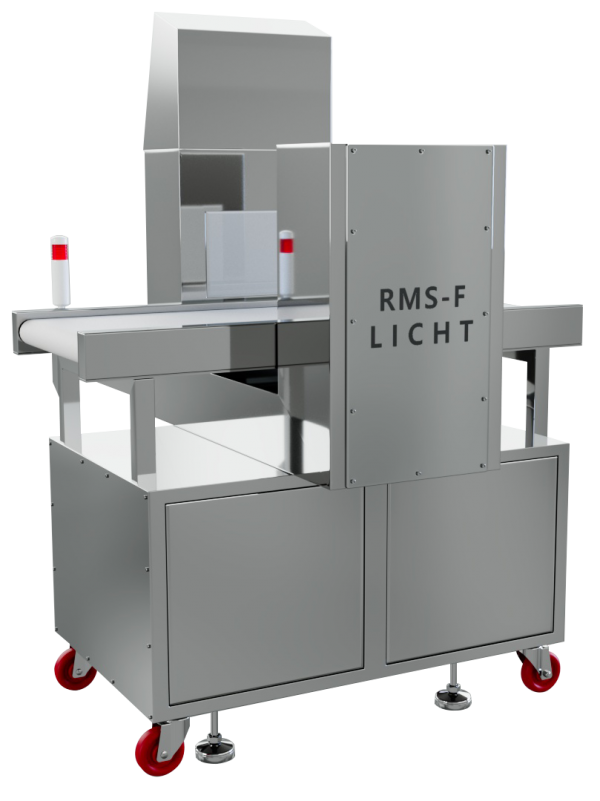

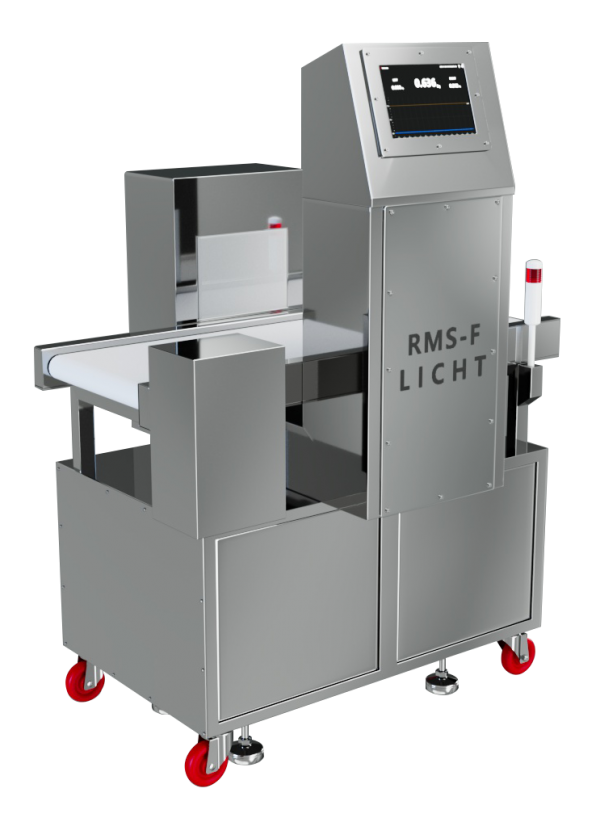

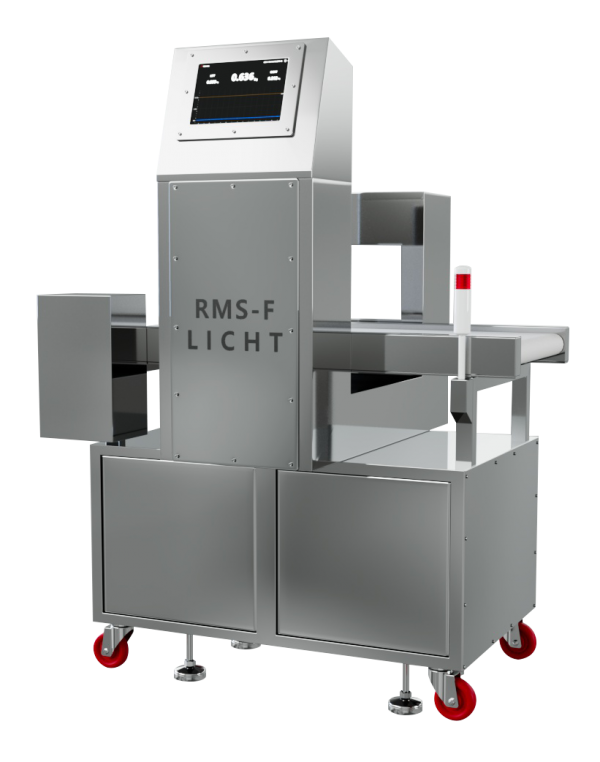

RMS-F (Radiation Monitoring System for Food)
RMS-F (Radiation Monitoring System for Food) can report accurately the radiation dose emitted from a test object as a numerical value through a sensor and photomultiplier tube when food enter the inspection table through a conveyor.
RMS-F is a radiation measuring instrument that can be used in various fields such as agriculture, marine products, and food as it can measure large quantities of food quickly and conveniently.
Detector
Detector type | Plastic scintillator |
Efficiency | 10,000 cps / (μSv/h, Cs-137), 5,000 cps / (μSv/h, Co-60) or more |
Sensitivity | 0.2 μSv/h BG condition, 0.1 μSv/h change detection ( <1 s ) |
Operating range | 30 keV ~ 3 MeV |
Operating temerature | 5℃ ~ 55℃ |
Alarm
Alarm type | Radiation detection |
Alarm | Beeping, Conveyor stop |
System specification
Operating system | Windows 11 Home |
Storage | eMMC drive: 64GB SSD drive: 128 GB |
RAM | 8GB RAM |
Display
Screen size | 10.5" PixelSense™ |
Resolution | 1920 x 1280 (220 PPI) |
Graphics | Intel® UHD Graphics 615 |
Other specifications
HEAD(mm) | 1050x400 |
CONVEYOR(mm) | 1200x450 |
BELT(mm) | 2230x348 |
BELT TYPE(mm) | 900207 |
ELECTRIC POWER | AC220-230, 50/60Hz |
