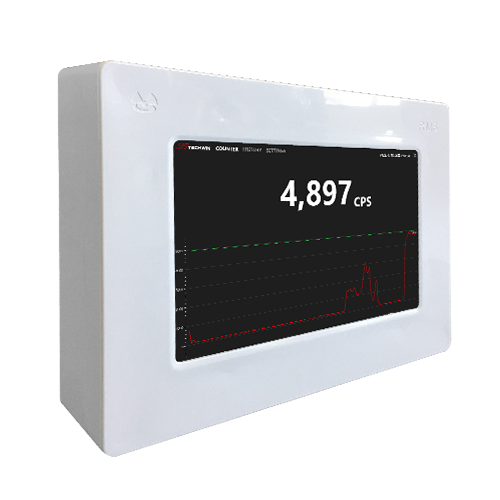

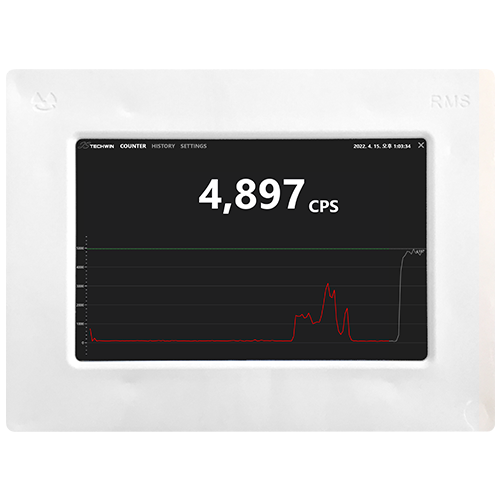

RMS-H
The RMS-H (Radiation Monitoring System for Hospital) is radiation detection in operating rooms and radiation isotope-labeled radio pharmaceutical manufacturing rooms and monitoring of radiation exposure conditions
throughout the hospital.
When radioactive materials are detected, guidance is given to safety / caution / danger according to the amount of radiation and the current status is transmitted to the monitoring system.
Detector
Detector type | Plastic scintillator |
Efficiency | 10,000 cps / (μSv/h, Cs-137), 5,000 cps / (μSv/h, Co-60) or more |
Sensitivity | 0.2 μSv/h BG condition, 0.1 μSv/h change detection ( <1 s ) |
Operating range | 30 keV ~ 3 MeV |
Operating temerature | 5℃ ~ 55℃ |
Alarm
Alarm type | Radiation detection |
Alarm | Beeping, Conveyor stop |
System specification
Operating system | Windows 11 Home |
Storage | eMMC drive: 64GB SSD drive: 128 GB |
RAM | 8GB RAM |
Display
Screen size | 10.5" PixelSense™ |
Resolution | 1920 x 1280 (220 PPI) |
Graphics | Intel® UHD Graphics 615 |
Other specifications
HEAD(mm) | 1050x400 |
CONVEYOR(mm) | 1200x450 |
BELT(mm) | 2230x348 |
BELT TYPE(mm) | 900207 |
ELECTRIC POWER | AC220-230, 50/60Hz |
VIDEO
