Products

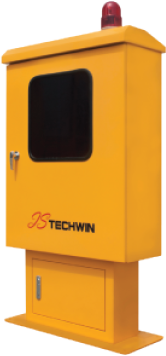

Radiation Monitoring System

Overview
Specifications

It is used to monitor the leakage of radioactive materials in nuclear power plants and major facilities using plastic scintillator radiation detector.

Industrial radiation monitoring system is a unique system that transmits signals to monitoring system when detecting radioactive materials using plastic scintillation and generates a warning siren.

Detectors

- Detector Type : Plastic Scintillation

- Volume : 7.62 L (50 cm x 30 cm x 5.08 cm)

- Sensitivity : 0.2 μSv/h BG condition,

0.1 μSv/h change detection ( <1 s )

- Operating Range : 40 keV ~ 3 MeV (Gamma)

- Temperature Operating : -20℃ ~ 60℃

Alarm Equipment

- Visual alarm : alarm light, electric sign board

- Auditory alarm system : Siren

- Alarm Types : Radiation, Sensor Failure, Instrument Failure

System Computer Specifications

- Intel© Atom Cherry Trail Processor

- 4 GB RAM

- Intel HD Graphics

- 32 GB eMMC

- 250 GB SSD

- 10/100 Mbps Network Card

- WiFi 802.11 b/g/n

- Windows 10

- 24 inch Monitor

- Operating Software

- Wired / Wireless Network Support

- Remote Monitoring System
