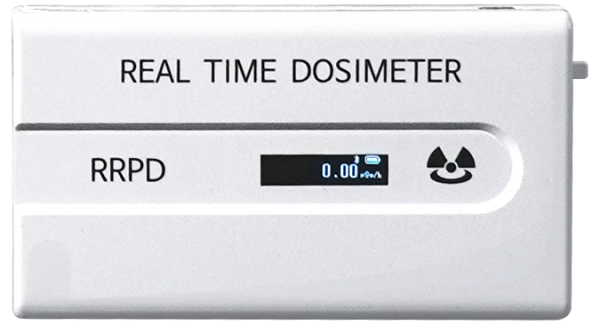

Real-time Radiation Personal Dosimeter

Ultra-compact radiation dosimeter that can be worn like a TLD. Using a scintillation sensor developed by our company, real-time monitoring is possible with less than 1 second detection time. Traceability of personal radiation exposure can be managed through a server or mobile phone application. Real-time radiation dosimeter can be used for personal exposure, management to prevent excessive exposure of medical personnel, maintenance personnel, and radiation-related workers.

Model Name	RRPD-c
Purpose	Real-time monitoring and history of radiation exposure of doctors and radiation workers in hospitals such as operating rooms
Operating Range	0.1 μSv/h ~ 9,999 μSv/h
Type of Measurement Radiation	Beta, Gamma, X-ray, Muon
Energy Range	< 3 GeV
Size&Weight	100.5 mm x 54.4 mm x 18.9 mm, 58 g
Battery	Rechargeable lithium polymer battery 3.7V 1,000 mAh
Reaction Time	< 1 sec
Accuracy	0.1 μSv/h (±10 %)
Sensor Type	Scintillator + SiPM
Display	OLED Display (128 x 32)
Wireless connection	BLE(Bluetooth Low Energy)
Charging specification	USB micro 5pin (5V)
Warranty period	1 year warranty
