Products

    RRPD-p

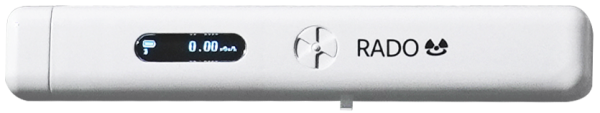

Real-time Radiation Personal Dosimeter


Ultra-compact radiation dosimeter that can be worn like a TLD. Using a scintillation sensor developed by our company, real-time monitoring is possible with less than 1 second detection time. Traceability of personal radiation exposure can be managed through a server or mobile phone application. Real-time radiation dosimeter can be used for personal exposure, management to prevent excessive exposure of medical personnel, maintenance personnel, and radiation-related workers.

Model Name

RRPD-p

Purpose

Real-time monitoring and history of radiation exposure of doctors and radiation workers in hospitals such as operating rooms

Operating Range

0.1 μSv/h ~ 9999 μSv/h

Type of Measurement Radiation

Beta, Gamma, X-ray, Muon

Energy Range

< 3 GeV

Size&Weight

20 mm x 127.3 mm x 24.9 mm, 37 g

Battery

Rechargeable lithium polymer battery 3.7V 500 mAh

Reaction Time

< 1 sec

Accuracy

0.1 μSv/h (±10 %)

Sensor Type

Scintillator + SiPM

Display

OLED Display (128 x 32)

Wireless connection

BLE(Bluetooth Low Energy)

Charging specification

USB micro 5pin (5V)

Warranty period

1 year warranty
