Products

    RRPD-b

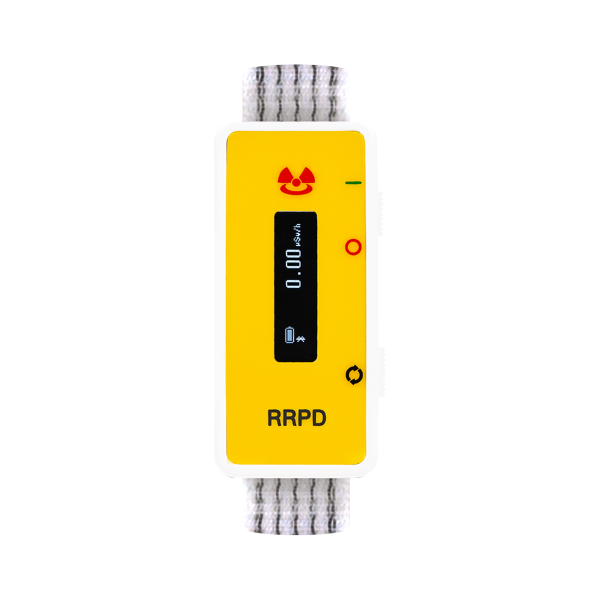

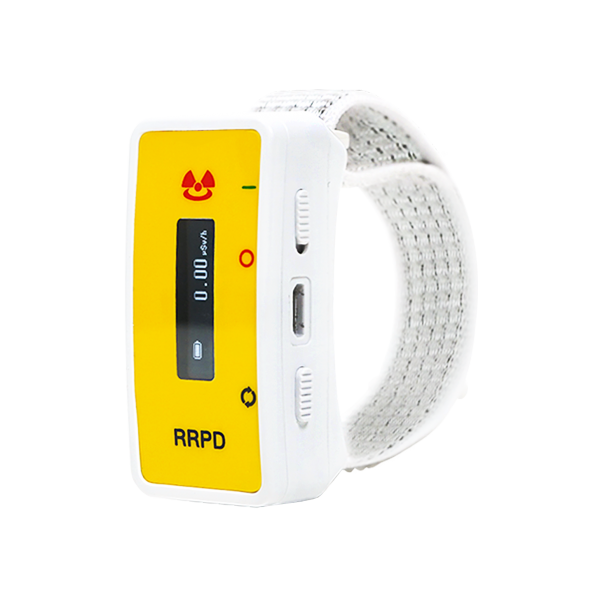

The Real-time Personal Radiation Dosimeter is used for the purpose of measuring the amount of radiation exposure by radiation workers in real time.

The real-time personal radiation dosimeter can measure quickly and accurately using microsecond scintillation sensors and photomultipliers, and can measure individual exposure in real time through a portable radiation  monitor system through bluetooth wireless communication.

Model name

RRPD-b

Operating

0.1 μSv/h ~ 999 mμSv/h

Type of measurement radiation

Beta, Gamma, X-ray, Muon

Energy range

< 3 GeV

Size & Weight

26mm x 57.2mm x 20.7mm, 28g

Battery

Rechargeable lithium polymer battery 3.7 V 180 mAh

Measuring time

< 1 sec

Accuracy

0.1 μSv/h (±10 %)

Sensor type

Scintillator + SiPM

Display

OLED Display (128 X 32)

Wireless connection

BLE (Bluetooth Low Energy)

Charging specification

USB micro 5 pin (5V)

Warranty period

1 year warranty
